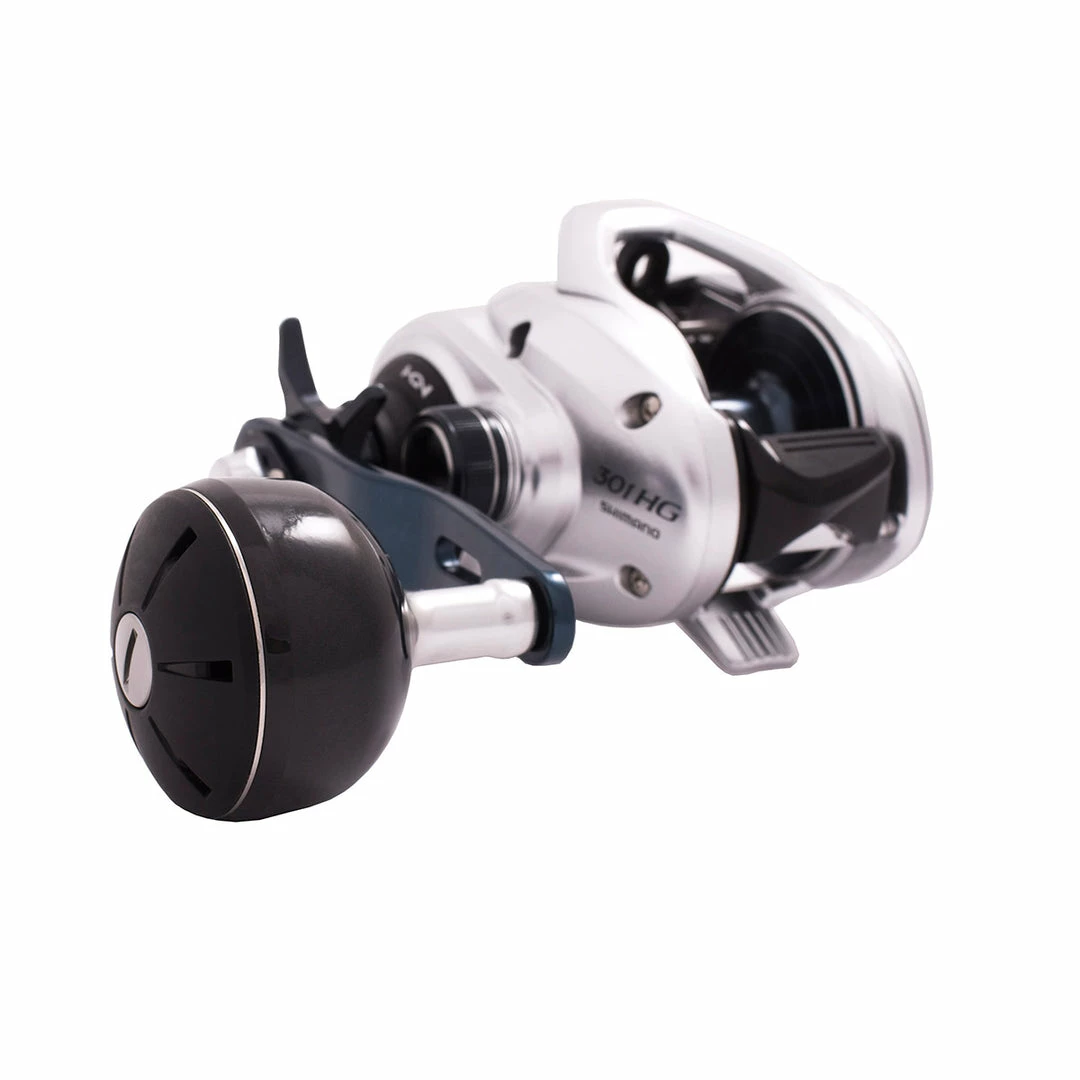

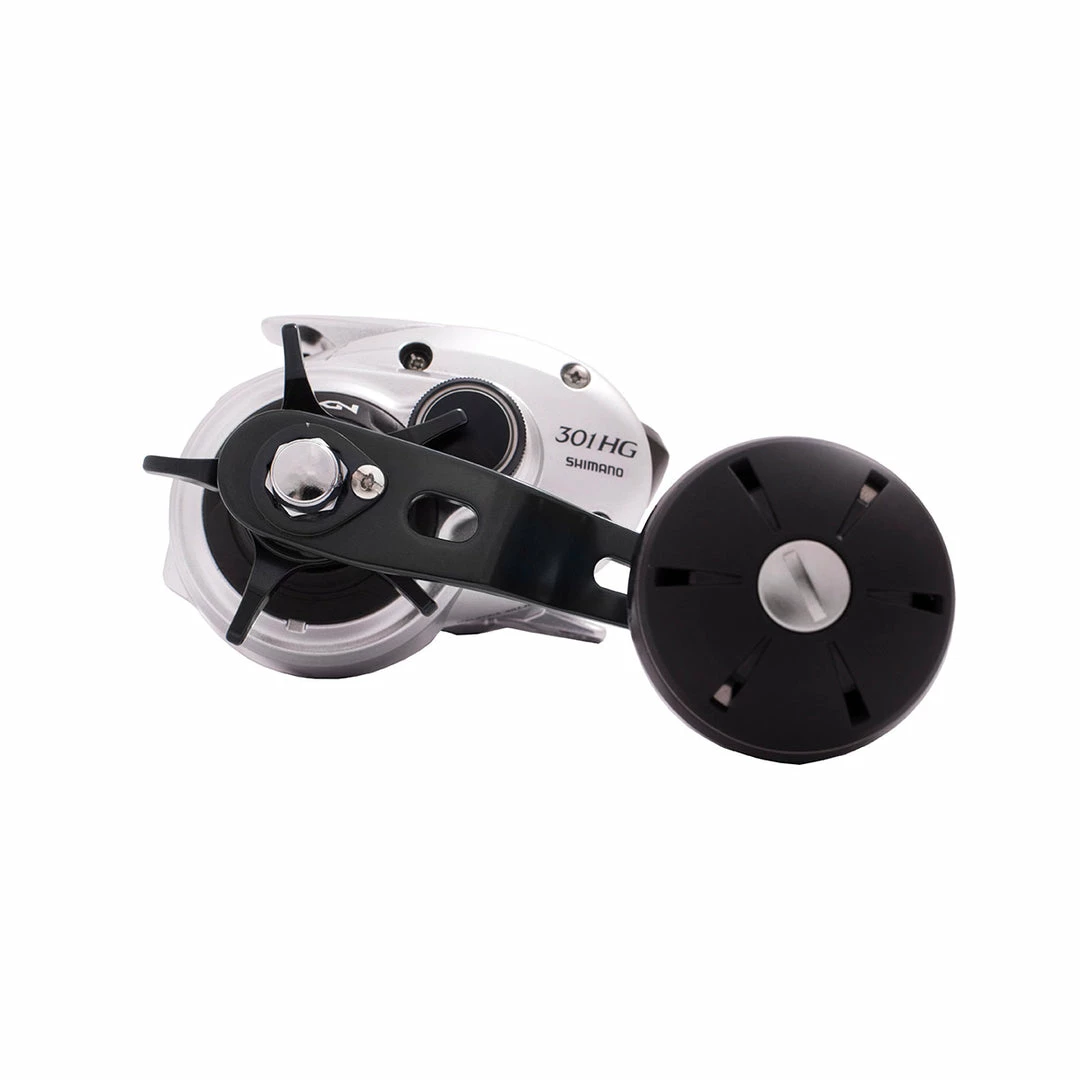

Shimano Tranx 301 HG A (LH) Reel

The totally new Tranx is designed as a ‘working machine for big fish’. It’s a heavy duty low profile baitcasting reel which is the only one of it’s kind in the Shimano EU range. It’s a very strong, durable and reliable reel which is suitable for both fresh and salt water purposes. These kind of reels are often used for fishing with heavy and big lures for big fish. The Tranx is made for this job and that’s why it’s not one of the lightest with it’s 330 grams

Type of ReelBait Casting

Maximum Drag Force (kg) 8

HAGANE Body Yes

Line Capacity main spool Nylon(mm-m)(Mono)0.30-235

Discipline DetailBaitcasting

Weight JP/EU Model g 330 g

HAGANE Gear No

DynaBalanceYes

Line Capacity main spool USA/Power Pro(lb-yd)40-195/50-190/65-125

E-I Treatment No

Spool Size 301

MicroModule No

Power Roller No

Reel Series Name Tranx HG A

Environment Usage SW/FW

X Ship Yes

Gear ratio 1 7.6:1

SW Concept No

Line Retrieve/Crank cm 100

Silent Drive No

Handle style (Straight / Crank) Crank

Mechanical Position A-side

Line Counter No

Pinion Gear Material Brass

Drag Type Star drag

A side Material Al

Small Box Yes

S CompactBody No

Spool Type S3D

Spare Handle Knob Shape No

Open Type Of B-Side Escape hatch

Handle material Aluminium

Level wind Yes

Assist StopperYes

Spool Material Aluminium

ClampackYes

Spool Lock No

Super free Yes

B side Material Al

Drive Gear Material Brass

Direct level wind Yes

Material of Drag WasherCarbon

Handle (Single or Double) Single

Changeable Handle Knob Yes

Labyrinth Mechanism

NoType Of BrakeSVS∞

Main Handle Knob Shape Paddle

Reel Frame Material Al

Drag Sound No

Core Fit Body No

Bulk No

Drag Position  A-side

Retrieve left L
